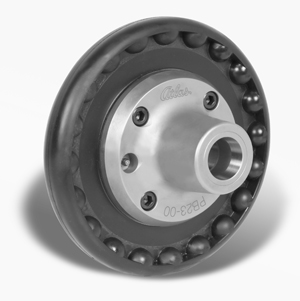

Front Hand Wheel Quickie 5C Collet Chucks

  • Fast and easy, front hand wheel operation
  • Reduces operator fatigue
  • Quick Change over Chuck to Collet Chuck – No linkages or drawtubes
  • For 5C collets
  • One year warranty
  • Accurate-Maximum cone TIR .0005″
  • Available in D type (camlock), A type, L type (long tapered nose) threaded, Flat Back and 4º taper
  • Hand wheel teeth nitrided for longer life
  • Body nickel plated for corrosion resistance

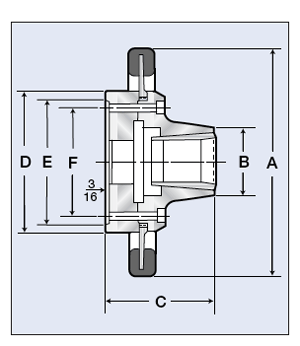

Plain Back Chuck Specifications
Item No.Desc.Collet TypeRound Cap.ABC**DEFWeight
PB23-005C-PB5C1.069.0*2.254.255.554.1219
**Dimension C is chuck without spindle adapter mounting plate. Add approximately 1.125" to dimension C. If exact ‘B’ dimension with mounting plate is required contact factory.
D Type Cam-Lock Chuck Specifications
Item No.SpindleRound Cap.Weight Lbs
PB23-D3D1-31.0622
PB23-D4D1-41.0622
PB23-D5D1-51.0622
PB23-D6D1-61.0625
PB23-D8D1-81.0630
PB23-D11D1-111.0635
A Type American Standard Chuck Specifications
Item No.SpindleRound Cap.Weight Lbs
PB23-A4A1-41.0622
PB23-A5A1-51.0622
PB23-A6A1-61.0625
PB23-A8A1-81.0628
PB23-A11A1-111.0633
L Type American Standard Chuck Specifications
Item No.SpindleRound Cap.Weight Lbs
PB23-L00L001.0623
PB23-L0L01.0625
PB23-L1L11.0635
PB23-L2L21.0640
Threaded Mount Chuck Specifications
Item No.SpindleRound Cap.Weight Lbs
PB23-411-1/2-81.0623
PB23-421-3/4-81.0623
PB23-432-1/4-81.0623
PB23-444° Taper1.0625
PB23-452-3/16-101.0623
PB23-462-3/8-61.0623
