| 4-Jaw Independent Manual VTL Chucks (mm/inch) | ||||||
|---|---|---|---|---|---|---|
| Chuck Size | Recess Mount | Mount | Type A Spindle | Max. rpm | Min. Clamping | Approx. Weight |
| 600/23.6 | 2443-2000VTL | A-8 | 2443-2A8VTL | 970 | 180/7.08 | 530 lbs |
| 600/23.6 | A-11 | 2443-2A11VTL | 970 | 180/7.08 | 530 lbs | |
| 700/27.5 | 2843-2000VTL | A-8 | 2843-2A8VTL | 873 | 180/7.08 | 838 lbs |
| 700/27.5 | A-11 | 2843-2A11VTL | 873 | 180/7.08 | 838 lbs | |
| 800/31.5 | 3243-2000VTL | A-11 | 3243-2A11VTL | 764 | 180/7.08 | 1125 lbs |
| 800/31.5 | A-15 | 3243-2A15VTL | 764 | 180/7.08 | 1125 lbs | |
| 900/35.5 | 3643-2000VTL | A-11 | 3643-2A11VTL | 679 | 180/7.08 | 1380 lbs |
| 900/35.5 | A-15 | 3643-2A15VTL | 679 | 180/7.08 | 1380 lbs | |
| 1000/39.4 | 4043-2000VTL | A-11 | 4043-2A11VTL | 611 | 200/7.87 | 1874 lbs |
| 1000/39.4 | A-15 | 4043-2A15VTL | 611 | 200/7.87 | 1874 lbs | |
| 1000/39.4 | A-20 | 4043-2A20VTL | 611 | 200/7.87 | 1874 lbs | |
| 1200/47.2 | 4843-2000VTL | A-11 | 4843-2A11VTL | 509 | 240/11.0 | 2646 lbs |
| 1200/47.2 | A-15 | 4843-2A15VTL | 509 | 240/11.0 | 2646 lbs | |
| 1200/47.2 | A-20 | 4843-2A20VTL | 509 | 240/11.0 | 2646 lbs | |
| 1400/55 | 5543-2000VTL | A-11 | 5543-2A11VTL | 437 | 240/11.0 | 3748 lbs |
| 1400/55 | A-15 | 5543-2A15VTL | 437 | 240/11.0 | 3748 lbs | |
| 1400/55 | A-20 | 5543-2A20VTL | 437 | 240/11.0 | 3748 lbs | |
| 1500/59 | 5943-2000VTL | A-15 | 5943-2A15VTL | 407 | 240/11.0 | 4718 lbs |
| 1500/59 | A-20 | 5943-2A20VTL | 407 | 240/11.0 | 4718 lbs | |
| 1600/63 | 6343-2000VTL | A-15 | 6343-2A15VTL | 382 | 240/11.0 | 5732 lbs |
| 1600/63 | A-20 | 6343-2A20VTL | 382 | 240/11.0 | 5732 lbs | |
| 1800/71 | 7143-2000VTL | A-15 | 7143-2A15VTL | 340 | 240/11.0 | 6900 lbs |
| 1800/71 | A-20 | 7143-2A20VTL | 340 | 240/11.0 | 6900 lbs | |
| 1800/71 | A-28 | 7143-2A28VTL | 340 | 240/11.0 | 6900 lbs | |
| 2000/79 | 7943-2000VTL | A-15 | 7943-2A15VTL | 306 | 240/11.0 | 9260 lbs |
| 2000/79 | A-20 | 7943-2A20VTL | 306 | 240/11.0 | 9260 lbs | |
| 2000/79 | A-28 | 7943-2A28VTL | 306 | 240/11.0 | 9260 lbs |

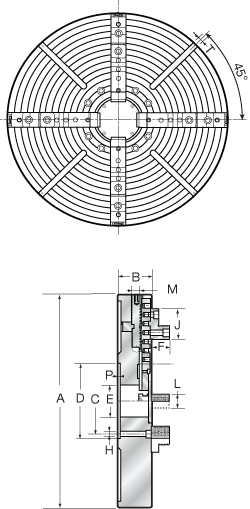

| Dimensional Data 4 Jaw Independent Manual VTL Chucks | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Size A (mm/inch) | B | C | D | H | F | J | L | T-Slot | M |
| 600/23.6 | 135/5.31 | 235/9.25 | 300/11.81 | 8xM20 | 74/2.91 | 130/5.12 | 60/2.36 | 4x22/.866 | 40/1.575 |
| 700/27.5 | 135/5.31 | 235/9.25 | 300/11.81 | 8xM20 | 74/2.91 | 130/5.12 | 60/2.36 | 4x22/.866 | 40/1.575 |
| 800/31.5 | 135/5.31 | 330/12.99 | 380/14.96 | 8xM24 | 74/2.91 | 130/5.12 | 60/2.36 | 4x22/.866 | 40/1.575 |
| 900/35.4 | 135/5.31 | 330/12.99 | 380/14.96 | 8xM24 | 74/2.91 | 130/5.12 | 60/2.36 | 4x22/.866 | 40/1.575 |
| 1000/39.4 | 150/5.90 | 330/12.99 | 380/14.96 | 8xM24 | 78/3.07 | 130/5.12 | 75/2.95 | 4x22/.866 | 50/1.968 |
| 1200/47 | 160/6.30 | 463.6/18.25 | 520/20.47 | 8xM24 | 78/3.07 | 130/5.12 | 75/2.95 | 4x22/.866 | 50/1.968 |
| 1400/55 | 170/6.69 | 463.6/18.25 | 520/20.47 | 8xM24 | 78/3.07 | 130/5.12 | 75/2.95 | 4x22/.866 | 50/1.968 |
| 1500/59 | 175/6.89 | 647.6/25.50 | 720/28.35 | 8xM30 | 78/3.07 | 130/5.12 | 75/2.95 | 4x22/.866 | 50/1.968 |
| 1600/63 | 185/7.28 | 647.6/25.50 | 720/28.35 | 8xM30 | 102/4.01 | 180/7.09 | 90/3.54 | 4x28/1.10 | 64/2.519 |
| 1800/71 | 185/7.28 | 647.6/25.50 | 720/28.35 | 8xM30 | 102/4.01 | 180/7.09 | 90/3.54 | 4x28/1.10 | 64/2.519 |
| 2000/79 | 200/7.87 | 647.6/25.50 | 720/28.35 | 8xM30 | 102/4.01 | 180/7.09 | 100/3.94 | 4x28/1.10 | 64/2.519 |
