Atlas 3-Jaw VTL Scroll Chucks

Sizes 630mm/27.5″ to 2500mm/71″

  • Forged Steel Body
  • 2 Piece American Standard Master & Hard Top Jaws
  • Hardened Jaw Ways
  • Hardened Scroll and Pinion Gears
  • Reduced Maintenance
  • Master Jaw Wiper Blade
  • Extra Length Master Jaws for internal Chuck component protection
  • Thru-Hole Cover Plate
  • Custom T-Slots optional
  • Available for straight recess, A Type Spindles or Custom Mounting
  • Larger sizes are available; consult the factory for special quotations
Self Centering VTL Manual 3-Jaw Universal Chucks
Chuck Size (mm/inch)Model No.MountMax rpm’sMin ClampingApprox. Weight
700/27.52833-2000VTLRecess825180/7739 lbs
800/31.53233-2000VTLRecess740180/7904 lbs
900/35.43633-2000VTLRecess650180/71246 lbs
1000/39.44033-2000VTLRecess600200/7.81590 lbs
1200/474833-2000VTLRecess450240/9.52646 lbs
1400/555033-2000VTLRecess400240/9.54078 lbs
1600/636333-2000VTLRecess335240/9.56173 lbs
1800/717233-2000VTLRecess300240/9.59479 lbs

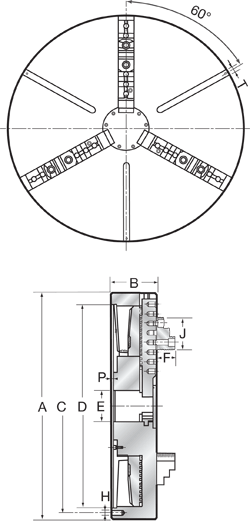

Dimensional Data Self Centering VTL Manual 3-Jaw Universal Chucks (mm/inch)
ModelABCDF
2833-2000VTL700/27.5162/6.38660/25.98630/24.8071/2.74
3233-2000VTL800/31.5167/6.57760/29.92730/28.2471/2.74
3633-2000VTL900/35.4172/6.77850/33.46810/31.8971/2.74
4033-2000VTL1000/39.4200/7.87950/37.40910/35.8271/2.74
4833-2000VTL1200/47200/7.87950/37.40910/35.8280/3.15
5033-2000VTL1400/55200/7.87950/37.40910/35.8280/3.15
6333-2000VTL1600/63200/7.871050/41.33910/35.8280/3.15
7233-2000VTL1800/71200/7.871050/41.33910/35.8280/3.15
