NBK Super Thin Low Profile Flange Mount 3-Jaw Scroll Chucks

Series NBK
The Ultimate Low Profile 3-Jaw Universal Chuck

  • Three operating pinions positioned at a 30 degree angle for easier operation
  • Sizes available 6, 8, 10 and 12 inch diameter
  • 14, 16 and 20 inch diameter chucks available by request
  • Easy Installation with flange type mounting
  • One Year Warranty
  • Accurate .001″ repeatability on duplicate parts using the nominated pinion
  • Ideal for Drill Presses, Standard Mills, Vertical Machining Centers, Angle Plates, Tombstones, and Grinding Machines
  • American Standard hard top and master jaws



NBK Super Thin Low Profile Flange Mount Round 3-Jaw Scroll Chucks
Order Part #Approx WeightExternal Gripping
Capacity
Internal Gripping
Capacity
T-Handle Input
Torque
Gripping
Force
Min.Max.Min.Max.Max. ft/lbsMax. ft/lbs
NBK624 lbs..31"6.30"1.89"5.91"4411,801
NBK840 lbs..43"7.87"2.44"7.48"5814,751
NBK1062 lbs..47"9.84"2.83"9.41"9722,126
NBK1295 lbs..59 "11.81"3.38 "11.41"11528,027
1. The MAX gripping force was measured at the midpoint of master jaw stroke in static condition.
2. Never exceed the gripping range; otherwise, the poor engagement between jaw tooth and scroll will cause breakage in jaw tooth, thus it will result in hazard by flying workpiece.
3. Take care of interference among jaws, machine and cutting tools, as op jaws stick out of the edge of chuck body when gripping big workpiece.

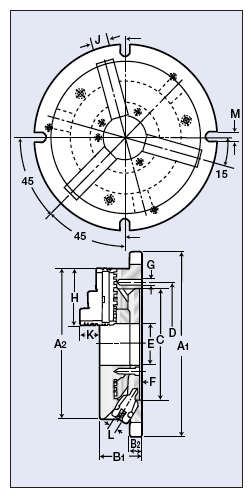

Dimensional Data (in inches)
Order Part #A1A2B1B2CDEFGHJKL*M
NBK68.66"6.69"2.28"0.71"5.12"5.79"1.77"0.24"3-M10x1.5P2.68"1.02"1.57".394".512"
NBK810.63"8.27"2.56"0.78"6.10"6.77"2.36"0.24"3-M10x1.5P3.23"1.10"1.69".433".512"
NBK1012.40"10.04"2.87"0.78"7.48"8.27"3.15"0.24"3-M12x1.75P3.66"1.26"2.04".472".630"
NBK1214.57"12.00"3.15"0.87"9.84"11.22"4.13"0.21"3-M12x1.75P4.64"1.57"2.32".551".708"
Dimensional Data (in inches)
*square drive
