Power Chucks

Quick-Change Jaw Grip Fast Power Chucks, Standard and King Bore

Quick-Change Jaw Grip Fast Power Chucks, Standard and King Bore

Constant Grip High Speed Thru-Hole Power Chucks, Sizes 6" Thru 24" Shown with optional jaw setting fixture and hard reversible top jaws. Jaw Presetting Fixture Order Number 1009-07090 for use with 6", 8", 10", 12", 15", 18" and 20" sizes Standard Bore and King Bore...

3-Jaw Constant Grip Power Chucks

3-Jaw Constant Grip Power Chucks

Constant Grip High Speed Standard and King Bore Thru-Hole Power Chucks Sizes 6" Thru 24" One Year Warranty High RPM – up to 6000 Constant Grip, internally counter-balanced design that reduces grip loss from centrifugal force of the jaws at high RPM. Easy Retrofit on...

Quick-Change 2-Jaw Power Chucks

Quick-Change 2-Jaw Power Chucks

Constant Grip High Speed Thru-Hole Power Chucks Jaw Presetting Fixture Order number 1009-07090 for use with 6", 8", 10", 12", 15", 18" and 20" sizes Standard Bore and King Bore Models Quick Change Jaw Power Chucks. One Year Warranty ±.0005" Repeatability 4-Point...

Constant Grip Quick-Change and Non-Quick Change Power Chucks

Constant Grip Quick-Change and Non-Quick Change Power Chucks

Closed Center Power Chucks Designed for Vertical Turning Lathes Jaw Presetting Fixture Order Number 1009-07090 for use with 6", 8", 10", 12", 15", 18" and 20" sizes Standard Bore and King Bore Models Quick Change Jaw Power Chucks. One Year Warranty ±.0005"...

MK4 3-Jaw Self-Contained Air Power Chucks & Accessories

MK4 3-Jaw Self-Contained Air Power Chucks & Accessories

One-year warranty Precision manufactured to fit types A and D spindles and adapter mounting Repetitive gripping within .001" TIR Safe, Chuck operates independently of air supply when gripping No separate actuating cylinder No draw tube to restrict thru-hole Sizes 5",...

ATL Series 3 Jaw Power Chucks 5″ thru 24″

ATL Series 3 Jaw Power Chucks 5″ thru 24″

Direct replacement chucks for Kitagawa B200 Series Easy retrofit Interchangeable Top Tooling 1.5mm x 60° Serrations up to 18" sizes, 3mm x 60° Serrations 20" & 24" sizes High speed Full 2 year warranty parts and labor Hardened jaw ways, master jaws and internal...

King Bore 3 Jaw Power Chucks

King Bore 3 Jaw Power Chucks

ATLB Series 6" thru 18" Super large thru-hole Easy Retrofit Interchangeable Top Tooling 1.5mm x 60° serrations High speed Full 2 year warranty parts and labor Hardened jaw ways, master jaws and internal parts Quick Change cover plate for closed center applications....

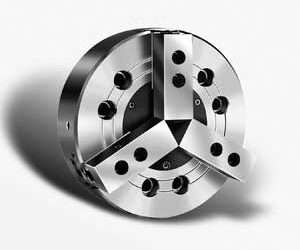

3 Jaw Wedge Type Closed Center Power Chuck

3 Jaw Wedge Type Closed Center Power Chuck

PA 18" – 63" Large Diameter Chucks All steel body Standard 3 jaw closed center wedge chuck for general machining Hardened jaw ways and all internal parts Standard metric serrations 3.0mm serration pitch

4 Jaw Universal Power Chucks

4 Jaw Universal Power Chucks

4ATL 6", 8", 10", 12", 15", 18" & 24" Chucks • All steel body • Hardened jaw way and internal parts • ± .0005 repeatability • 1.5mm x 60° master jaws • 4-Jaw universal design

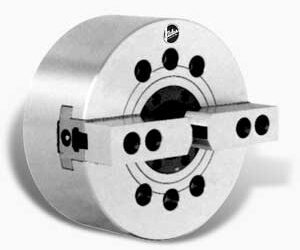

2 Jaw High Speed Open Center Power Chucks

2 Jaw High Speed Open Center Power Chucks

2ATL 6" – 12" Chucks • 1.5mm x 60° master jaw • Repeatability ± .0005" • Large thru-hole • Hardened jaw ways and all internal parts • All steel body • High RPM

2/3 Jaw Thru-Hole Power Chucks

2/3 Jaw Thru-Hole Power Chucks

PAFH 8" – 24" Chucks Used as 2 Jaw or 3 Jaw Power Chuck Thru-hole and long stroke Adapter mounted Serration Pitch 1.5mm 8", 10" & 12" - 3mm 15" Larger diameters available

Draw Down Power Chucks

Draw Down Power Chucks

PDD 4" – 15" Chucks 3 jaw draw down chuck for machining work requiring squareness and parallelism High accuracy Maintains high grip forces Adapter mount for A type spindles, other mounts available

Floating Type Compensating Power Chucks

Floating Type Compensating Power Chucks

DFC Chucks 7" - 16" 3 jaw power chuck with float compensation designed for shaft applications machined on centers Supplied with fixed or spring center (specify when ordering) Maximum durability achieved through internal sliding on spherical surface Adapter mount for A...

Stationary 2 and 3 Jaw Power Chucks

Stationary 2 and 3 Jaw Power Chucks

OLU 6" - 10" Chucks Super thin body Accuracy, plus minus .0005” Easy Retrofit Hydraulic Operation Standard Optional air operation Standard 1.5mm 60 degree fine serrated master jaws 1 year warranty

Ball Lock Power Chucks

Ball Lock Power Chucks

BL 6"–21" Chucks This chuck is used for gripping castings and forgings. It pulls back workpieces with tapered surfaces of up to 10 degrees while providing a right and left compliance of 5 degrees resulting in strong clamping force Available in self-centering version...

Cylinder Integrated Diaphragm Chucks

Cylinder Integrated Diaphragm Chucks

It becomes very easy to set up your precise chucking system by using the Atlas ATL100 series Cylinder-integrated Diaphragm Chuck. ATL100's built-in air cylinder eliminates the needs for installing an additional air cylinder in the back of the spindle, or tailor-making...
